Home  >  PUMPS  >  NH3  >  IN PLANT  > PUMP ONLY 2" CORKEN 521 NH3

PUMP ONLY 2" CORKEN 521 NH3 353190TB

Item #: 005-9352101
Manufacturer Item: 353190TB
Manufacturer: CORKEN
3778.43
Each
Quantity:
005-9352101

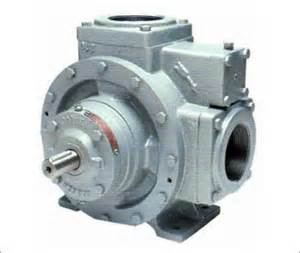

The Corken 521 pump is a sliding vane pump designed for handling LPG, NH3, and other petroleum and non-corrosive fluids. It features a ductile iron body, 2" x 2" FPT (female pipe thread) inlet and outlet, and a silicon carbide mechanical seal. It can handle a maximum differential pressure of 125 PSI and a maximum casing pressure of 400 PSI.

BELT

SIZE
2"
521

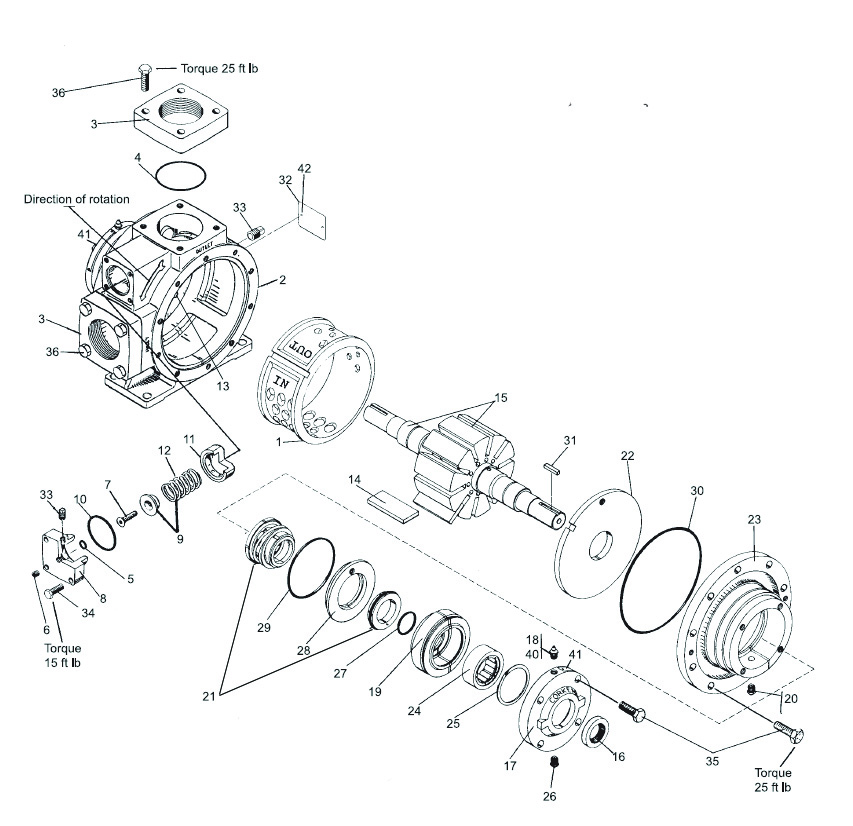

No. Part No. Item Description Qty Req.
4
005-9022347
CORKEN FLANGE O-RING 2"
1
9.13
Each
4
005-9022457
CORKEN FLANGE O-RING 3"
1
9.70
Each
5
005-9021126
O-RING
1
3.43
Each
9
005-9012421
SPRING GUIDE
1
67.32
Each
10
005-9022241
O-RING
1
4.95
Each
15
005-9116611
SHAFT & ROTOR
1
691.41
Each
16
005-9013585
CORKEN GREASE SEAL 2" & 3"
2
27.40
Each
17
005-9116411
BEARING COVER
2
105.04
Each
19
005-9017682
CORKEN BEARING HOUSING
2
131.29
Each
20
005-9013437
CORKEN RELIEF VENT
2
20.55
Each
21
005-9017699
CORKEN SEAL 2" & 3"
2
366.49
Each
14
005-9116873
VANE - 2" CORKEN
10
49.09
Each
0
005-9029042
REPAIR KIT 2904 X 2 -CORKEN 2"
1
1792.40
Each
