Home  >  PUMPS  >  NH3  >  IN PLANT  > PUMP ONLY 3" CORKEN Z3500 NH3

PUMP ONLY 3" CORKEN Z3500 NH3 Z3500/140121

Item #:005-9035001
Manufacturer Item: 140121
Manufacturer: CORKEN
4550.81
Each
Quantity:
005-9035001
The Corken Z3500 pump is a 3-inch sliding vane pump designed for stationary and truck applications, particularly for handling LPG and NH3. It boasts higher flow rates than the older Corken 1021 model and is designed for easy retrofitting. Key specifications include a maximum working pressure of 350 psig (24.1 bar g), a temperature range of -25°F to 225°F (-32°C to 107°C), and a flow range of 52-197 gpm (197-746 L/min).

BELT

SIZE
3"
005-9031951
Item #:
005-9031951
1529.61
Each
005-2007262
Item #:
005-2007262
514.08
Each
005-1104151
Item #:
005-1104151
1613.46
Each
Z3500
Enter the quantity for each needed part and click add to cart

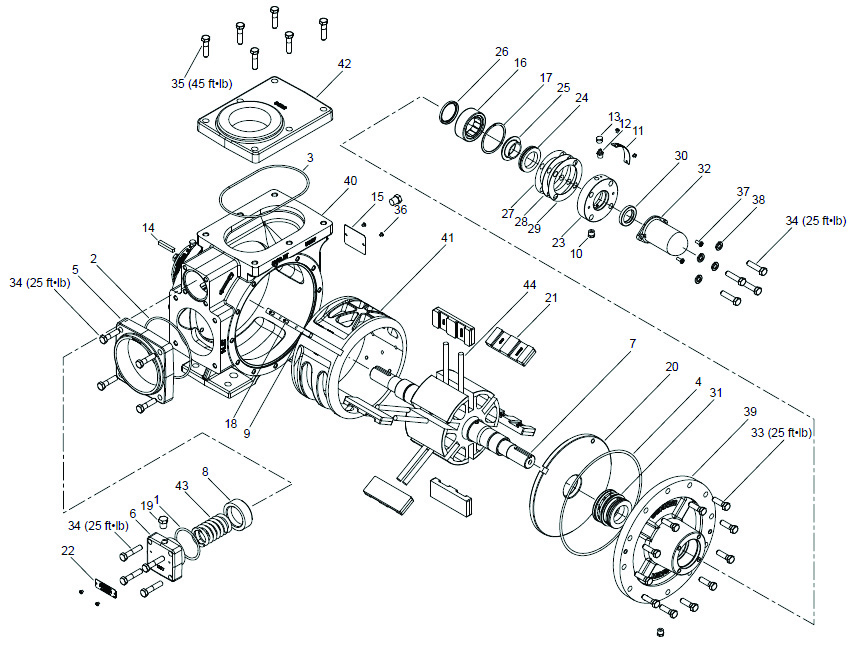

No. Part No. Item Description Qty Req. Price Qty
0 005-9031951
REPAIR KIT/CORKEN 3"
1
1529.61
Each
2 005-9022457
CORKEN FLANGE O-RING 3"
1
9.70
Each
3 005-9002259
O-RING 3" FLANGE-Z3500 PUMP
1
43.39
Each
4 005-9022684
CASE O-RING 3" CORKEN
2
25.12
Each
5 005-9012063
FLANGE-3" CORKEN
1
221.49
Each
10 005-9013437
CORKEN RELIEF VENT
4
20.55
Each
23 005-9044171
BEARING CAP Z3500
2
58.68
Each
26 005-9044381
SEAL Z3500
2
55.95
Each
30 005-9044411
GREASE SEAL Z 3500
2
36.54
Each
33 005-7001037
CAPSCREW
24
176.06
Each
Enter the quantity for each needed part and click add to cart
