PUMP 9303C-HM4C-U HYD 7 GPM 220 IN/200 OUT FLANGE/FPT
Item #:
007-0930346
Manufacturer Item: 9303C-HM4C-U
Manufacturer:
HYPRO
1208.90
Each
Quantity:
The Hypro 9303C & 9303S Series hydraulic motor driven, cast iron and stainless steel centrifugal pump achieves a max of 147gpm and 145psi.
Available in cast iron and 316 stainless steel for extended pump life
Hydraulic motor drive (for open center, closed center and load-sensing systems)
220 x 200 Universal Flange available (U)
Max. fluid temperature: 140°F/60°C
Impeller: Cast Iron models – Nylon; (GTX available) Stainless Steel models – Polypropylene
Motor: internal gear gerotor
Pump seals: Cast Iron models – Viton ® /ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models – Life Guard silicon carbide standard
Hydraulic motor seal: double-lip Teflon ®
Weight: 26 lbs./11.8 kg
HYDRAULIC
SIZE
1 1/2" X 1 1/4"
MATERIAL
CAST IRON

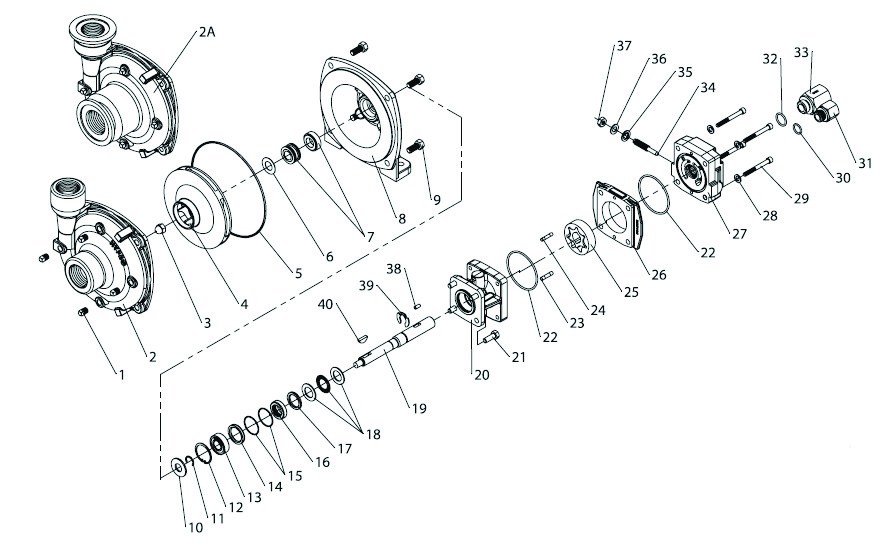

| No. | Part No. | Item Description | Qty Req. | Price | Qty |
| 1 |
DRAIN PLUG
|
1 |
8.94
Each
|
|
|
| 2 |
CASING
|
1 |
229.69
Each
|
|
|
| 2A |
9303 FLANGED CASING
|
1 |
254.17
Each
|
|
|
| 3 |
IMPELLER NUT
|
1 |
5.95
Each
|
|
|
| 4 |
IMPELLER 9202,9203,9303,9402
|
1 |
51.55
Each
|
|
|
| 4 |
IMPELLER POLY
|
1 |
56.92
Each
|
|
|
| 5 |
O-RING
|
1 |
3.65
Each
|
|
|
| 0 |
SEAL KIT/O-RING
|
1 |
236.81
Each
|
|
|
| 8 |
MOUNTING FLANGE
|
1 |
135.13
Each
|
|
|
| 9 |
HEX HEAD SCREW
|
4 |
0.97
Each
|
|
|
| 10 |
SLINGER RING
|
1 |
1.35
Each
|
|
|
| 11 |
RETAINER RING 1810-0014
|
1 |
0.00
Each
|
|
|
| 12 |
RETAINER RING 1820-0013
|
1 |
1.30
Each
|
|
|
| 13 |
BEARING
|
1 |
11.08
Each
|
|
|
| 18 |
THRUST BEARING
|
1 |
32.58
Each
|
|
|
| 19 |
KIT SHAFT HM2-HM4
|
1 |
254.08
Each
|
|
|
| 0 |
REPAIR KIT
|
1 |
61.00
Each
|
|
|
| 0 |
REPAIR KIT HYD MOTOR
|
1 |
93.64
Each
|
|
